Connecting your Computer to an ELMO Board

1. Identify the video output ports available on your computer and find the matching input on your ELMO Board.

                                                                                                             [EXAMPLE PRODUCTS; PORTS MAY VARY]

2. Make the connection.

3. Switch the input on the ELMO Board to match the connection. The input will have a small blue indicator.

4. You can now see your computer on the ELMO Board.

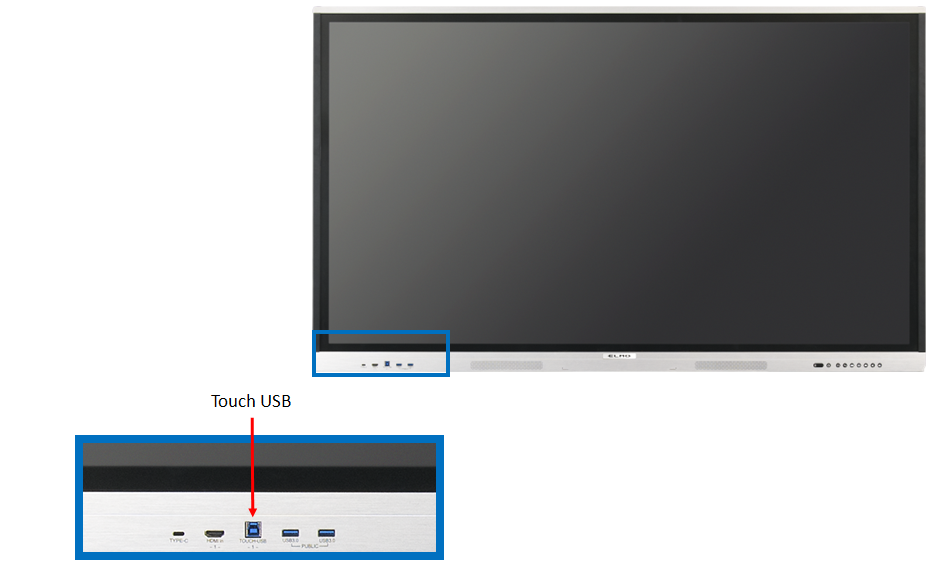

5. To enable touch screen control, you will need to connect an addition USB cable. Locate a free USB port on your computer and the 'Touch USB' port on the front of the ELMO Board.

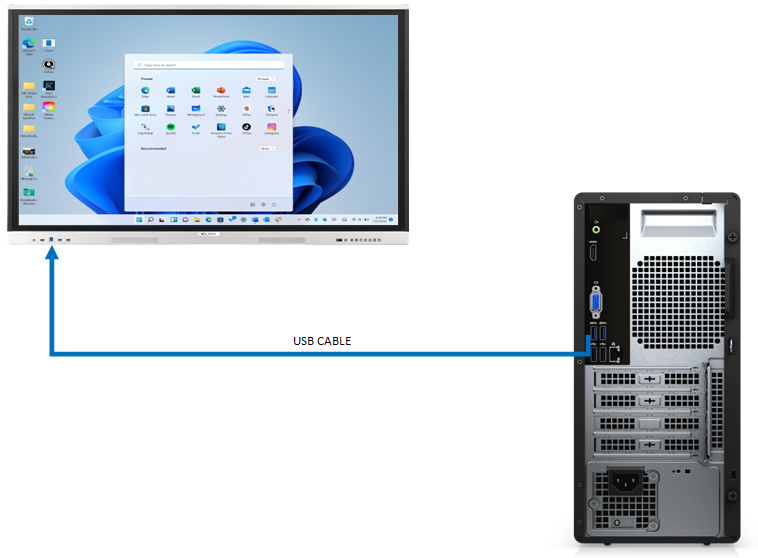

6. Make the connection.
