Connecting your ELMO Camera to an ELMO Board - USB Direct

Connecting your ELMO Camera to an ELMO Board - USB Direct

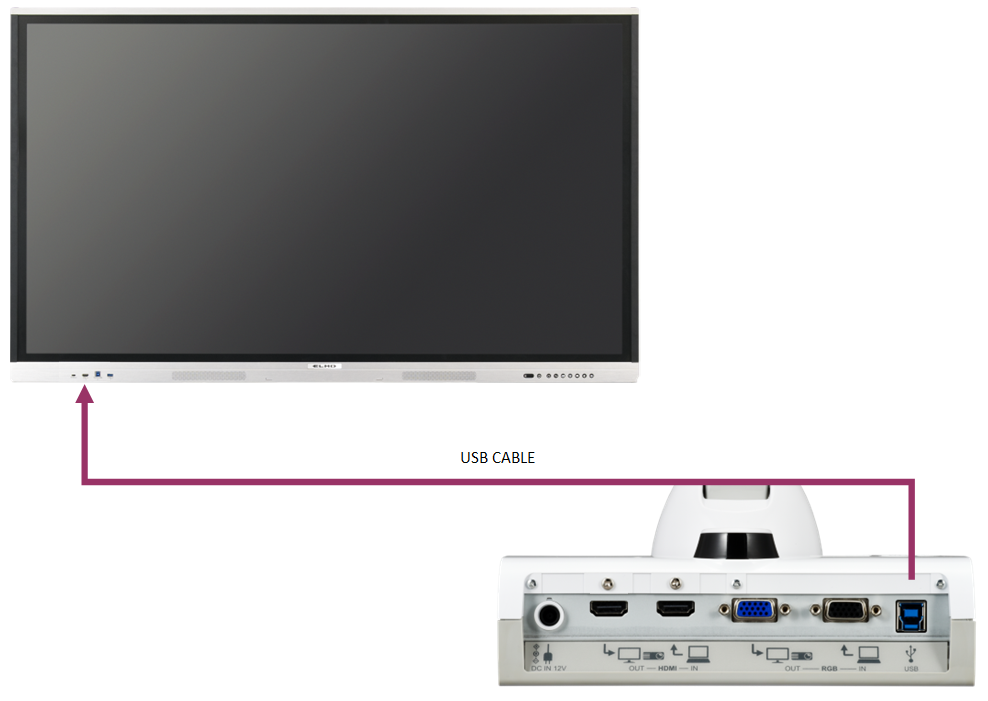

1. Locate the USB ports available on your ELMO Board and on your ELMO camera. For exact port locations, please refer to your product manual.




                                                             [EXAMPLE ELMO PRODUCTS; PORTS MAY VARY]


2. Make the connection.



3. Open the USB Camera app on your ELMO Board from the Home Menu or the side panel.


4. You can now view the ELMO camera. Use the arrows on the bottom to bring up the camera controls.


You can also open ELMO Note to annotate over the image.






5. When you are finished, press the Home button to close the app, or switch to another input.  If you want to save your work, you can take a screenshot.

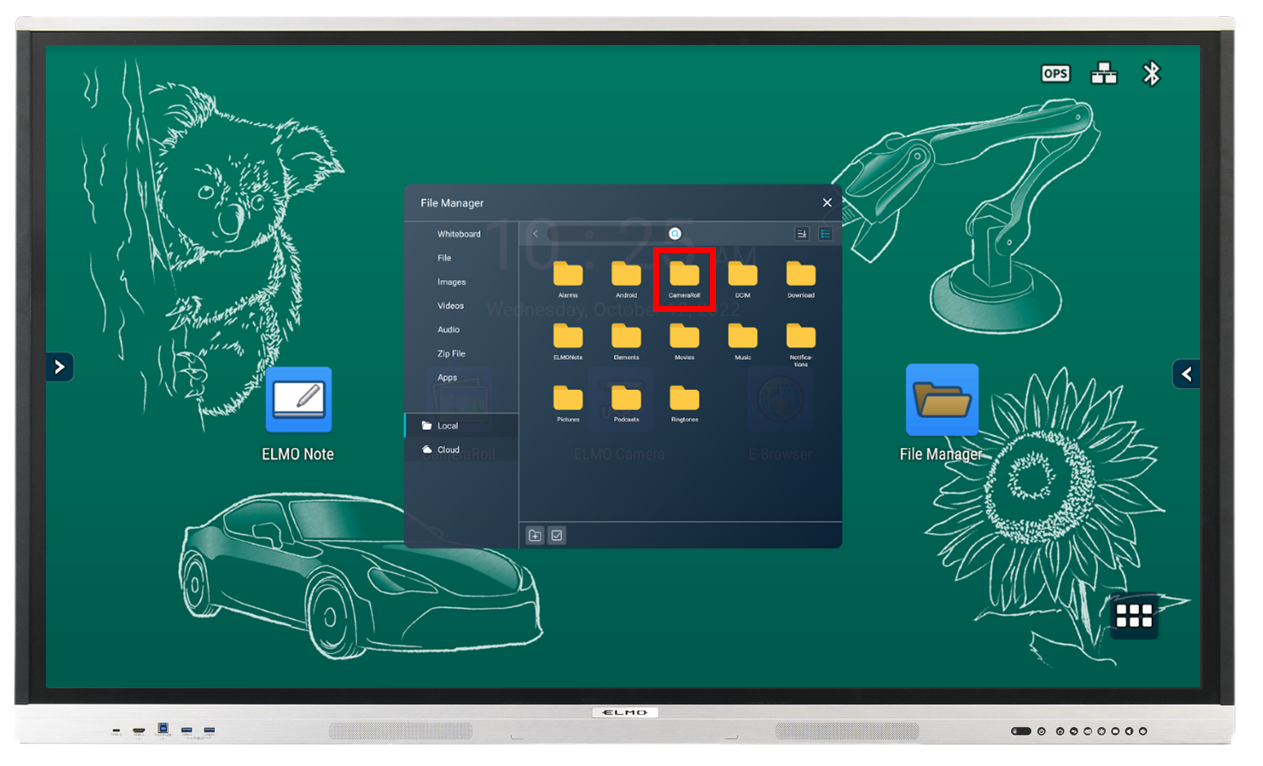

6. Saved photos can be accessed using the File Manager.
