Connecting your ELMO Camera to an ELMO Board - USB to OPS

Connecting your ELMO Camera to an ELMO Board - USB to OPS

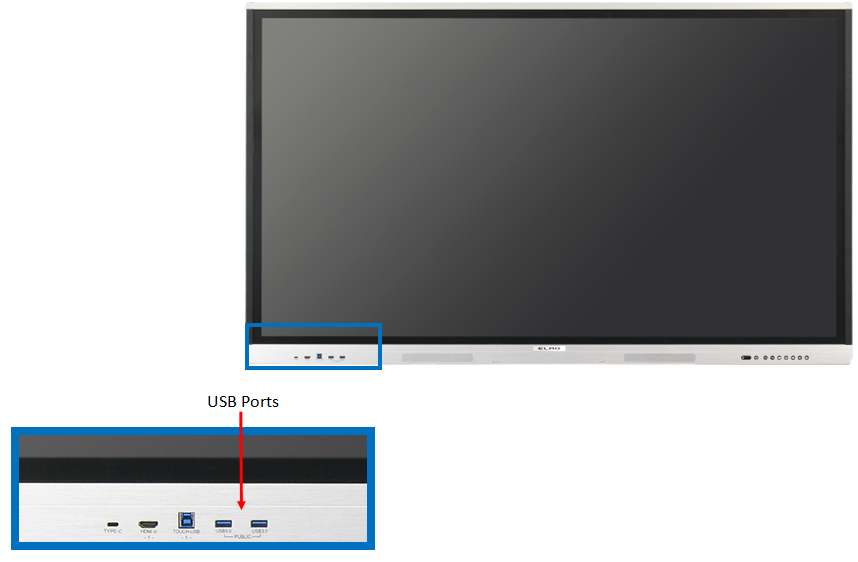

1. Locate the USB ports available on your OPS and on your ELMO camera. The OPS should be installed on the side of your ELMO Board. For exact port locations, please refer to your product manual.





You can also connect the ELMO Camera to a free USB port on your ELMO Board. The ELMO Board will pass the camera on to the OPS for you.



                                                                              *Not Pictured: USB inputs on side


[EXAMPLE PRODUCTS; PORTS MAY VARY]

2. Make the connection.

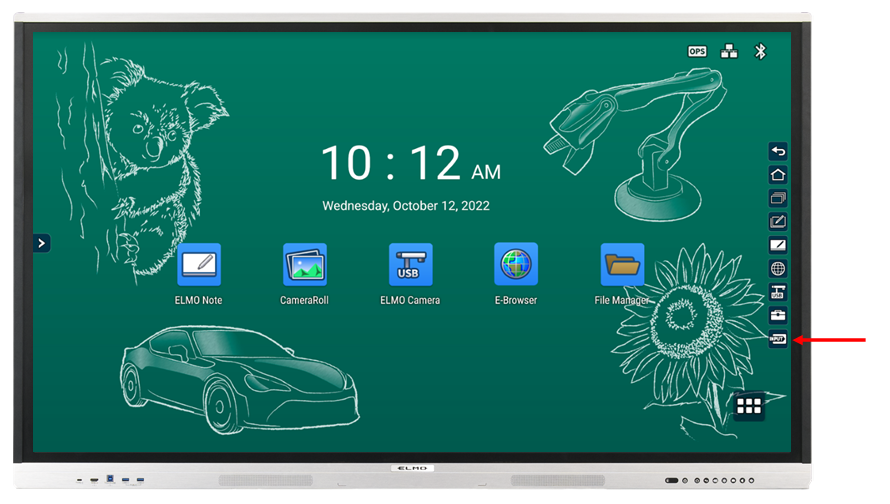

3. Switch the input to your OPS.

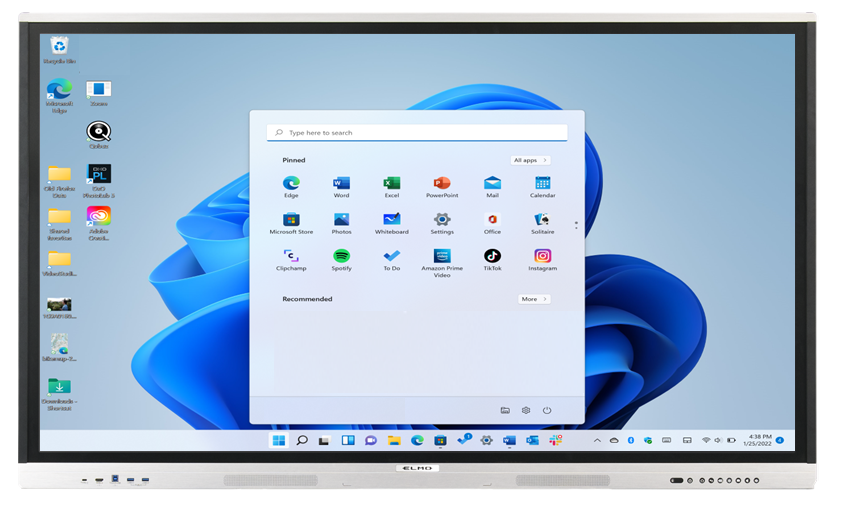

4. Start the software that is compatible with your ELMO Camera.
